Ny Isuzu GIGA tippbil

We production 3Tons to 30tons hook loader bin lift truck

Chengli Group is the largest special-purpose vehicle manufacturer in China. We can customize ISUZU, FOTON, HOWO, SINO, JAC, SHACMAN, DONGFENG, JMC and other brand trucks according to your needs.

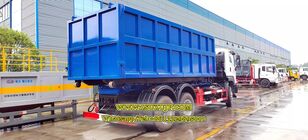

6X4 ISUZU GIGA 30tons hook loader dump truck
Specification:
Drive style Left hand drive
Drive model 6x4
Dimensions(LxWxH) 9600x2550x4000MM
Cargo body  Optional
Loading weight 25tons
Engine 6WG1-TCG61, 460hp
Emission standard EURO VI
Front axle 9
Rear axle 26
Transmission FAST 12 speed forward manual
Tires 315/80R22.5,10+1spare
Upperstructure Specification
Garbage Hopper Dimension 7000×2300×2000mm
Standard Configuration With one garbage bin, with hydraulic rear outrigger
Thickness Side 5mm,Bottom 6mm Carbon Steel
Dump type Hydraulic cylinder lifting and self-loading
Dump angle ≥45°
Hydraulic system pressure ≤30Mpa
Protective Material Q235 Carbon Steel
Controlling Way Three-way hydraulic control valve
Note： 1.32cbm capacity
2.Side plate thickness 4mm, bottom plate thickness 6mm
3.Material: carbon steel
